Solar/Hydrogen Vaults

The ECO-GEN is a durable, off-grid power and communications system designed for challenging environments where traditional infrastructure is limited.

Download PDF Call 01622 534000

  • Solar & hydrogen power

    Zero carbon, self-sustaining energy system.

  • 24/7 CCTV & highways ready

    Real-time data transfer via 4G/5G.

  • Rapid deployment

    Temporary or semi-permanent, remote locations.

  • Real-time remote monitoring

    VRM system with live performance data.

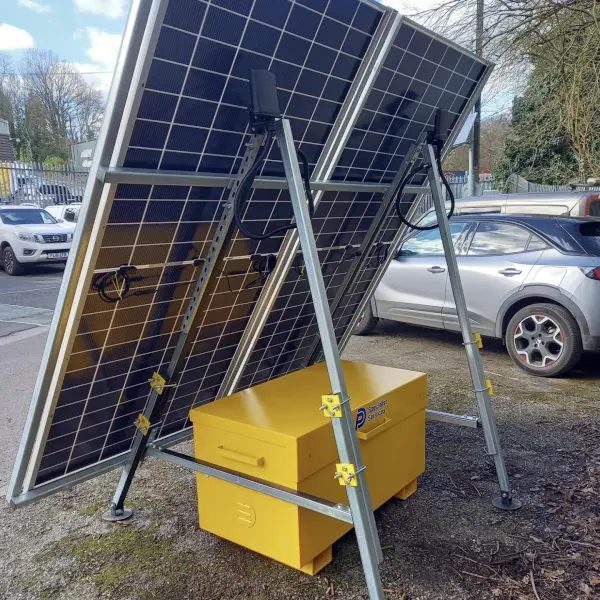

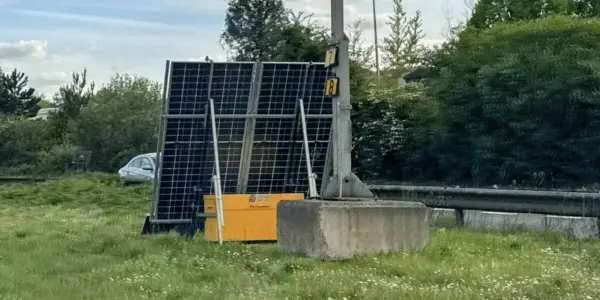

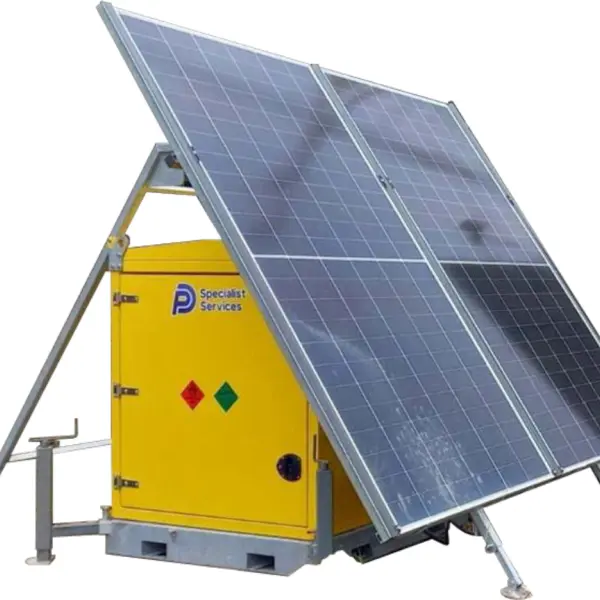

solar hydrogen vault with solar panelsolar hydrogen vault with solar panel on road networkssolar hydrogen vault with solar panel on road networks at night

Solar/Hydrogen Vaults

The UKs first solar hybrid, traffic vehicle control barrier. Instantly deployed to protect work zones.

The ECO-GEN is a durable, off-grid power and communications system designed for challenging environments where traditional infrastructure is limited. Advanced solar technology with hydrogen fuel cell backup provides reliable, efficient power for temporary or semi-permanent installations, available to hire or buy.

Hydrogen fuel cell

The ECO-GEN's hydrogen fuel cell produces electricity from the reaction between hydrogen and oxygen from the air, a highly efficient, clean energy source that supplements solar to provide peak power on demand. Fuel cell output is monitored remotely via the VRM system, with low-pressure alerts to ensure efficient maintenance scheduling.

Technical Specifications

  • Weight -
    820kg (excludes solar panels and additional fitted hardware).
  • Dimensions (excludes solar panels) -
    Length - 2,996mm | Width - 2,475mm | Height - 2,500mm.
  • Cabinet -
    Powder coated RAL1023 Traffic Yellow, lockable secure access panels, IP rated, ventilated for safe airflow.
  • Structure -
    Galvanised solar array structure, adjustable solar array support frame feet, adjustable feet for secure level seating.
  • Connectivity -
    4G/5G point-to-point data transfer.
  • Monitoring -
    VRM real-time performance monitoring with remote communication and low-pressure alert system.
  • Available -
    Hire or buy.

Applications

  • Highways

    Remote sites, no infrastructure needed.

  • Construction

    Off-grid compounds, zero carbon power.

  • Airports and ports

    Perimeter monitoring, self-sustaining power.
