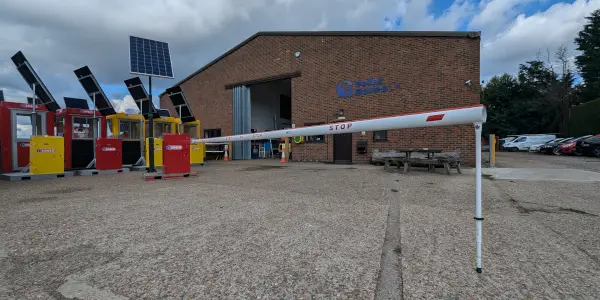

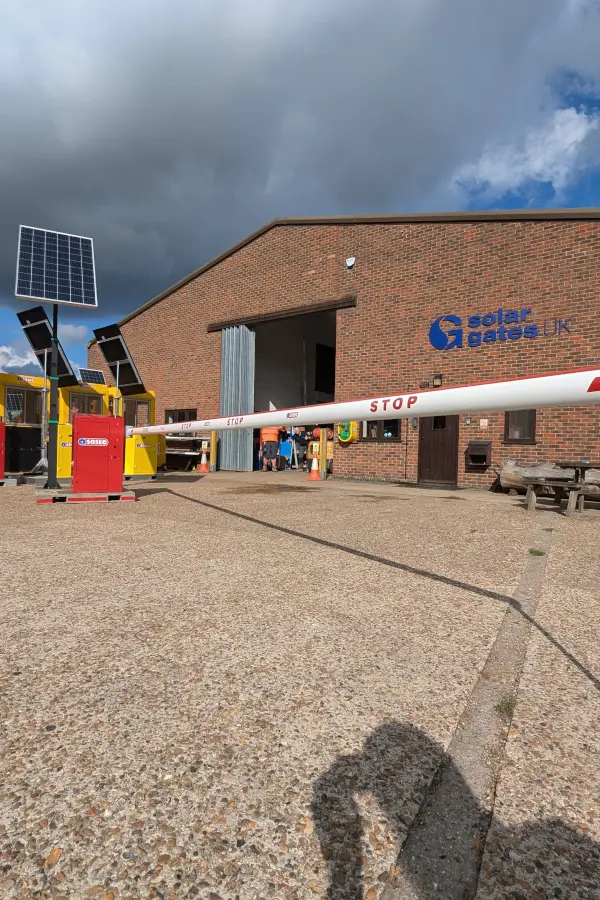

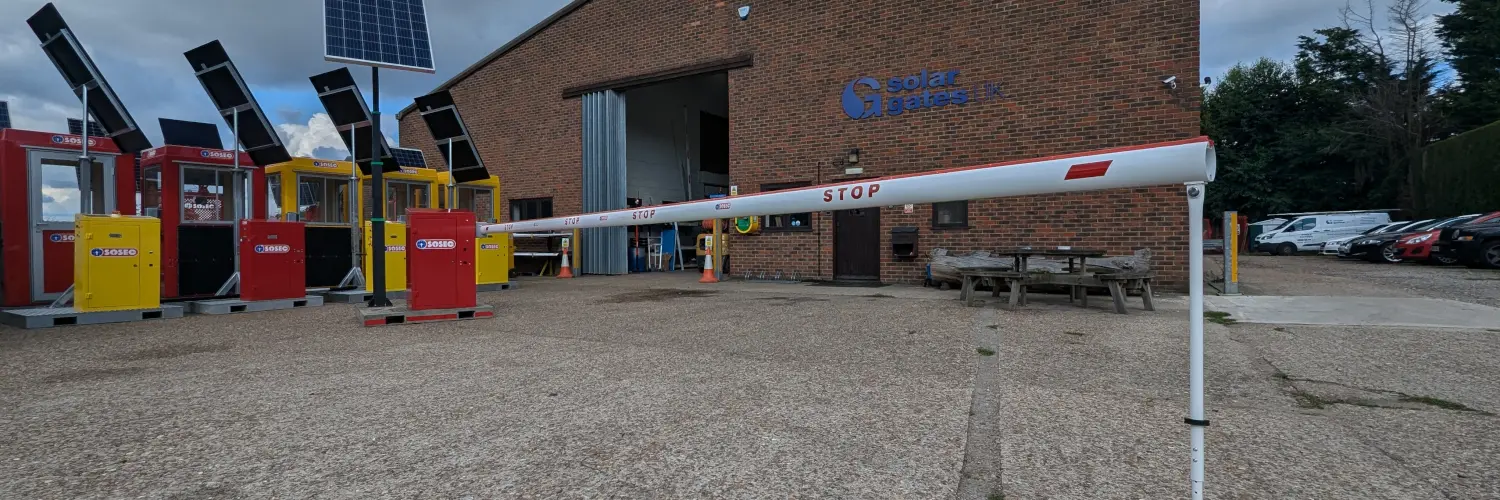

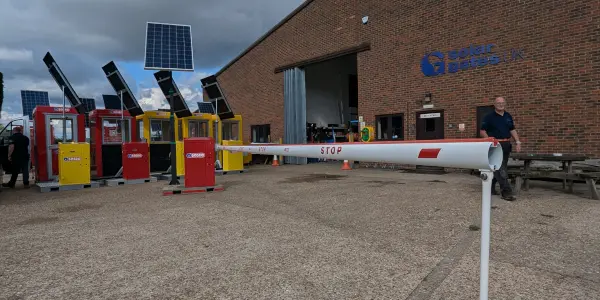

Built for wider sites. Powered by the sun.
The SOSEC 200+ delivers reliable, automated vehicle access control wherever you need it. With a 7-metre barrier arm, configurable from 5 to 7 metres, it covers wider entrances and exits that standard barriers can't reach, without any external power source or fixed infrastructure.
The upgraded solar mount and mast design makes installation and repositioning faster and simpler in the field. Enhanced solar efficiency means more operations per winter day, so performance holds up when daylight is shortest and demand is highest.
Built to withstand heavy use and harsh conditions, the SOSEC 200+ is engineered for long-term reliability on demanding sites.
Technical Specification
- Description:
Off-grid, 24/7/365 solar automated vehicle access control barrier. - Daily cycles:
Up to 400 operations daily average in winter on solar; maximum 3,500 cycles per day. - Power:
None required. Fully off-grid. - Max span:
7m (5-7m optional). At 7m, boom must not be stored in the upright position unnecessarily. - Boom:
White aluminium boom with reflective sticker pack, tip support and leg support as standard. Optional integrated red/green warning lights and/or drop skirt (up to 6m). - Weight:
425kg. - Base:
1,200mm x 1,200mm mild steel, galvanised, with forklift points. - Solar:
380W PV panel, sectional mast with adjustable height, tilt and rotation. - Locking:
Direct drive locked gearbox with internal manual release. - Access control:
50m remote control. - Safety:
Non-contact safety beam and contact force tested to EN12445. - Standards & compliance:
BS/EN13241 | UKCA Declaration of Conformity (UK) | CE Declaration of Conformity (CE) | NSI/DHF TS011:2019.
